ABD50DC Block Up Converter (BUC)

Order code:1-070677
Manufacturer:Actox

Request A Quote Description

ABD50DC Block Up Converter (BUC)

50 W frequency converter (C-band)
5.85 GHz-6.725 GHz Frequency range
Low power consumption (235 W max.)
High output power efficiency (50 W min. @ P1dB in case of overheating)
Digital temperature compensation
Replaceable connector type (F/n)
LED indicator
Modern M&
C interface in combination with RS-232/485, as well as additionally the possibility of frequency manipulation
The required frequency is 10 M

ABD50DCF Block Up Converter (BUC)

Order code:1-070678
Manufacturer:Actox

Request A Quote Description

ABD50DCF Block Up Converter (BUC)

ABC50DC Block Up Converter (BUC)

Order code:1-070679
Manufacturer:Actox

Request A Quote Description

ABC50DC Block Up Converter (BUC)

50 W frequency converter (C-band)
5.85 GHz-6.725 GHz Frequency range
Low power consumption (234 W max.)
High output power efficiency (50 W min. @ P1dB in case of overheating)
Digital temperature compensation
Replaceable connector type (F/n)
LED indicator
Modern M&
C interface in combination with RS-232/485, as well as additionally the possibility of frequency manipulation
The required frequency is 10 M

ABC50DCF Block Up Converter (BUC)

Order code:1-070680
Manufacturer:Actox

Request A Quote Description

ABC50DCF Block Up Converter (BUC)

ABA1KU Block Up Converter (BUC)

Order code:1-070681
Manufacturer:Actox

Request A Quote Description

ABA1KU Block Up Converter (BUC)

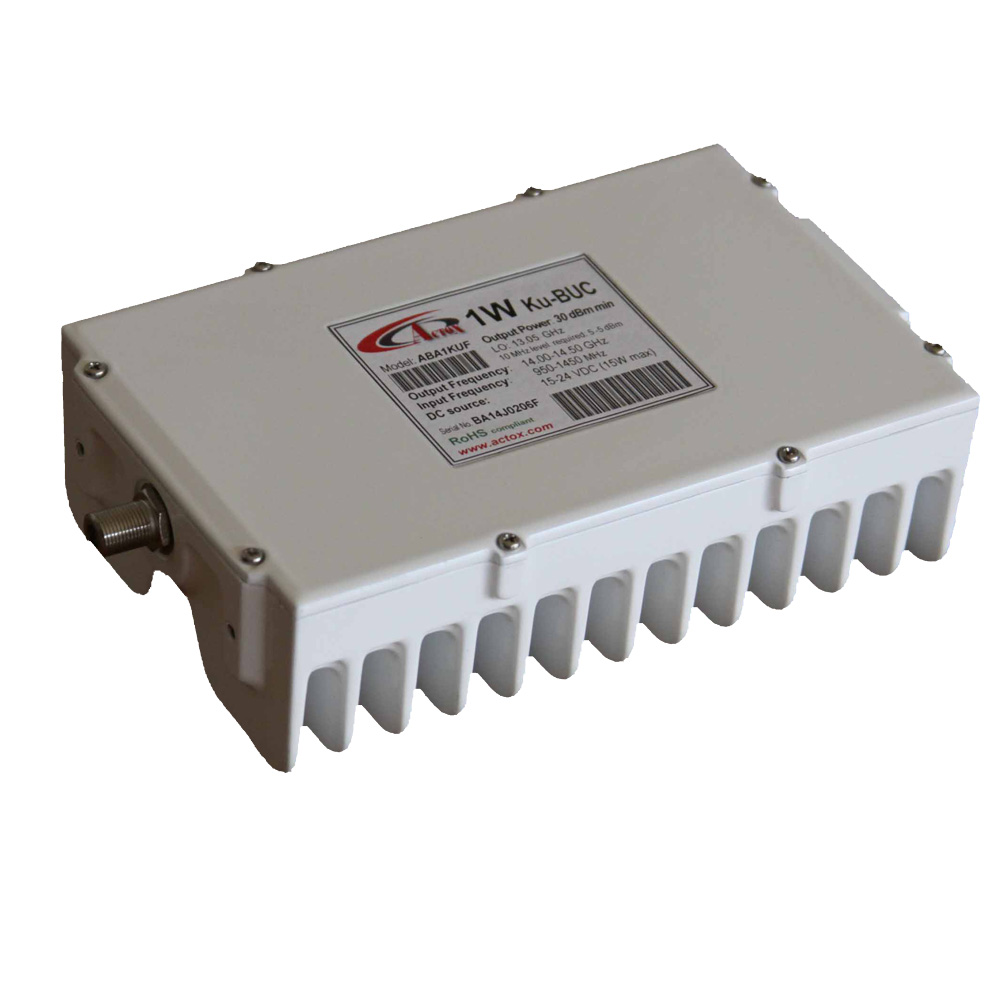

1 W converter with increased frequency (Ku-band)
This device is a fixed transmitter amplifier with low phase noise and synchronizing phase fluctuations , as well as a highly reliable MIS microwave power amplifier and an L-band converter (950 to 1450 MHz) intermediate frequency at the input to the Ku-band (14.00 to 14.50 GHz) radio frequency at the output

ABA1KUF Block Up Converter (BUC)

Order code:1-070682
Manufacturer:Actox

Request A Quote Description

ABA1KUF Block Up Converter (BUC)

ABA2KU Block Up Converter (BUC)

Order code:1-070683
Manufacturer:Actox

Request A Quote Description

ABA2KU Block Up Converter (BUC)

2 W converter with increased frequency (Ku-band)
This device is a fixed transmitter amplifier with low phase noise and synchronizing phase fluctuations , as well as a highly reliable MIS microwave power amplifier and an L-band converter (950 to 1450 MHz) intermediate frequency at the input to the Ku-band (14.00 to 14.50 GHz) radio frequency at the output

ABA2KUF Block Up Converter (BUC)

Order code:1-070684
Manufacturer:Actox

Request A Quote Description

ABA2KUF Block Up Converter (BUC)

ABAn2KU Block Up Converter (BUC)

Order code:1-070685
Manufacturer:Actox

Request A Quote Description

ABAn2KU Block Up Converter (BUC)

ABAn2KUF Block Up Converter (BUC)

Order code:1-070686
Manufacturer:Actox

Request A Quote Description

ABAn2KUF Block Up Converter (BUC)

ABAn2KUL Block Up Converter (BUC)

Order code:1-070687
Manufacturer:Actox

Request A Quote Description

ABAn2KUL Block Up Converter (BUC)

2 W converter with increased frequency (Ku-band)
This device is a fixed transmitter amplifier with low phase noise and synchronizing phase fluctuations , as well as a highly reliable MIS microwave power amplifier and an L-band converter (950 to 1,700 MHz) to Ku Vi (13.75 to 14.25 GHz) radio frequency at the output

ABAn2KULF Block Up Converter (BUC)

Order code:1-070688
Manufacturer:Actox

Request A Quote Description

ABAn2KULF Block Up Converter (BUC)

2 W converter with increased frequency (Ku-band)
This device is a fixed transmitter amplifier with low phase noise and synchronizing phase fluctuations , as well as a highly reliable MIS microwave power amplifier and an L-band converter (950 to 1,700 MHz) to Ku Vi (13.75 to 14.25 GHz) radio frequency at the output

ABAn2KUX Block Up Converter (BUC)

Order code:1-070689
Manufacturer:Actox

Request A Quote Description

ABAn2KUX Block Up Converter (BUC)

2 W mini-converter with frequency increase (Ku-band)
This device is a fixed transmitter amplifier with low phase noise and synchronizing phase fluctuations , as well as a highly reliable MIS microwave power amplifier and an L-band converter (950 to 1,700 MHz) to Ku Vi (13.75 to 14.50 GHz) radio frequency at the output

ABAn2KUXF Block Up Converter (BUC)

Order code:1-070690
Manufacturer:Actox

Request A Quote Description

ABAn2KUXF Block Up Converter (BUC)

ABA3KU Block Up Converter (BUC)

Order code:1-070691
Manufacturer:Actox

Request A Quote Description

ABA3KU Block Up Converter (BUC)

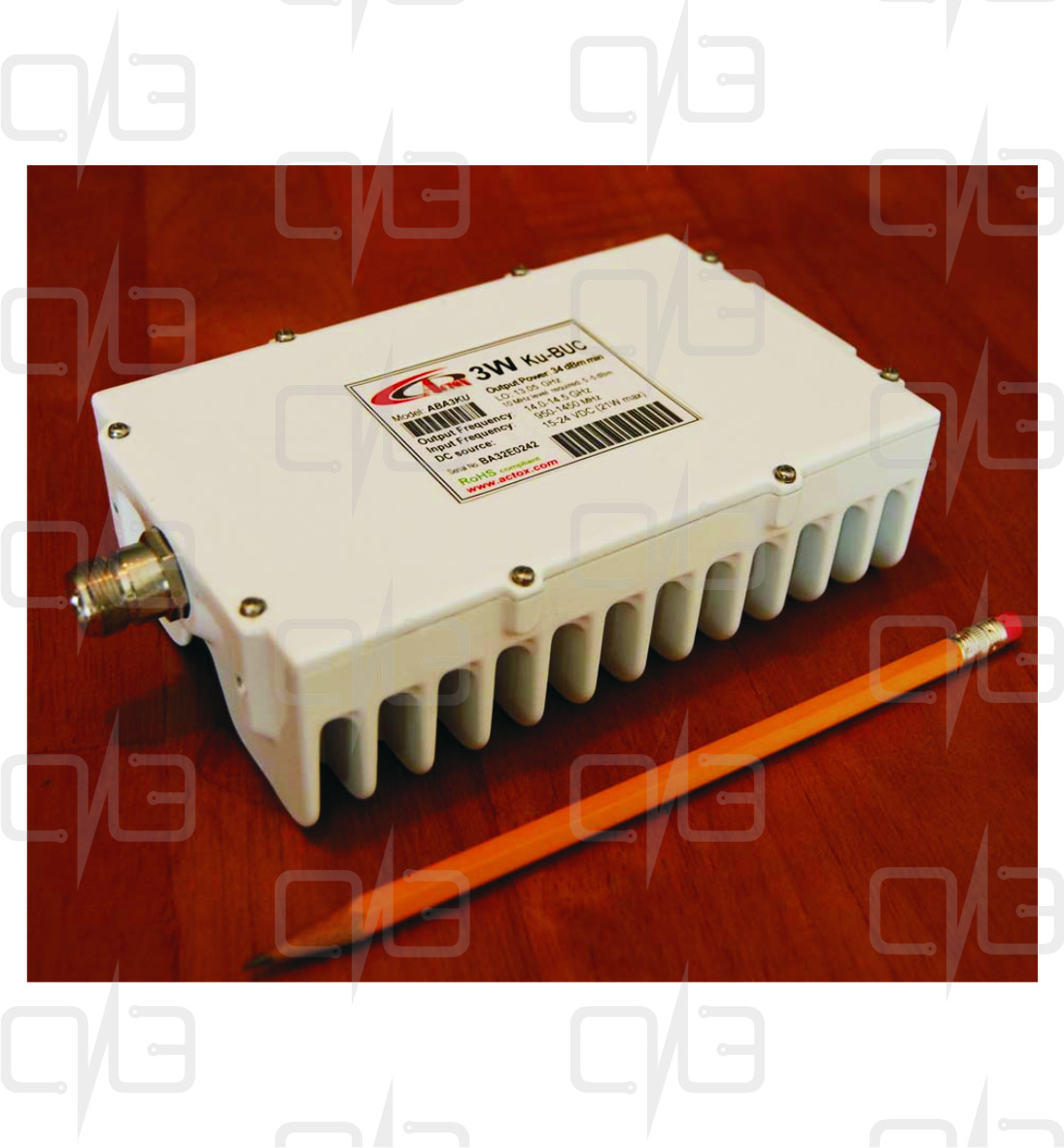

3 W converter with frequency increase (Ku-band)
This device is a fixed transmitter amplifier with low phase noise and synchronizing phase fluctuations , as well as a highly reliable MIS microwave power amplifier and an L-band converter (950 to 1450 MHz) intermediate frequency at the input to the Ku-band (14.00 to 14.50 GHz) radio frequency at the output

ABA3KUF Block Up Converter (BUC)

Order code:1-070692
Manufacturer:Actox

Request A Quote Description

ABA3KUF Block Up Converter (BUC)

ABAn3KU Block Up Converter (BUC)

Order code:1-070693
Manufacturer:Actox

Request A Quote Description

ABAn3KU Block Up Converter (BUC)

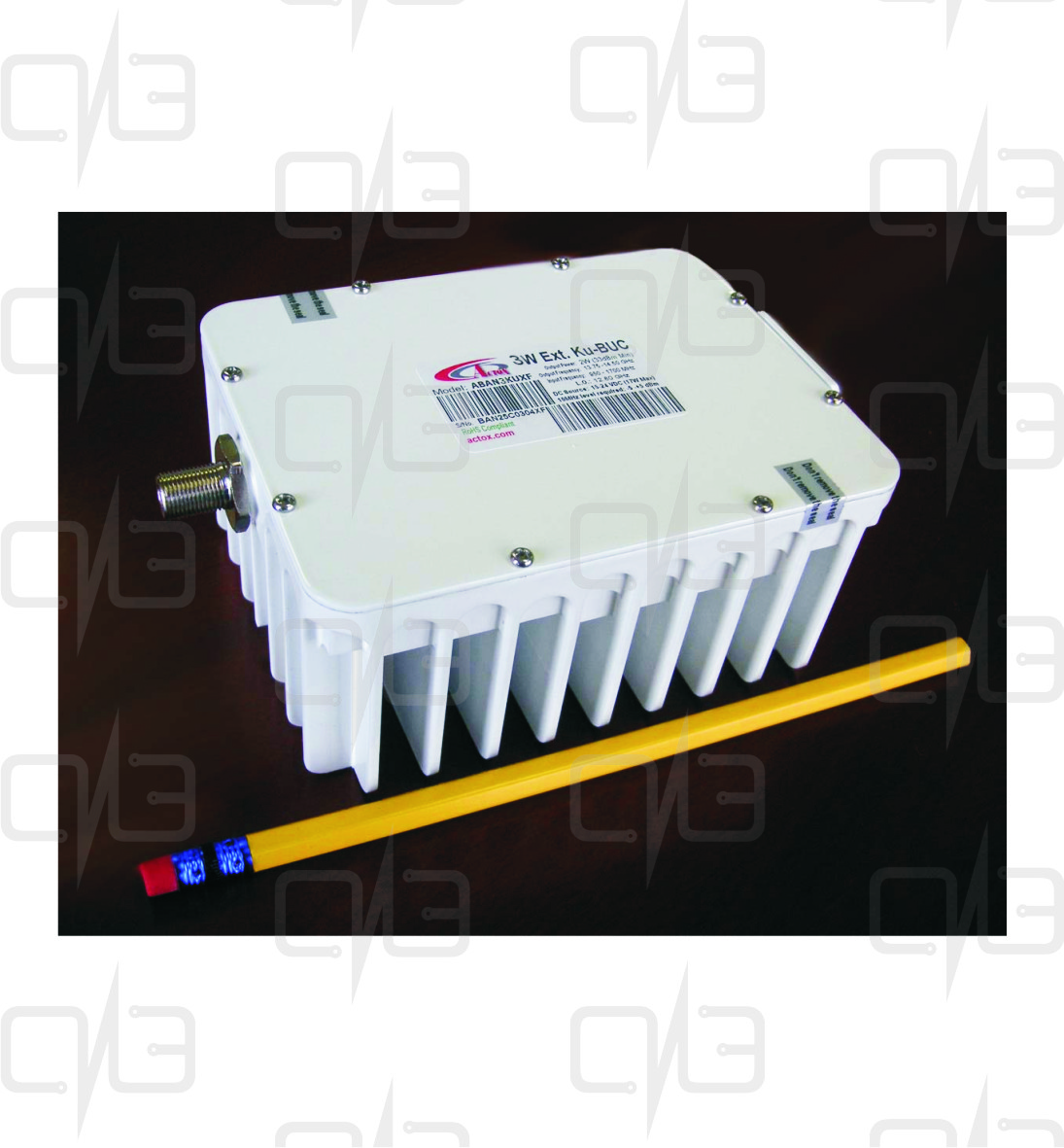

3 W converter with increased frequency (Ku-band)
This device is a fixed transmitter amplifier with low phase noise and synchronizing phase fluctuations , as well as a highly reliable MIS microwave power amplifier and an L-band converter (950 to 1,450 MHz) to Ku Vi (14.00 to 14.50 GHz) radio frequency at the output

ABAn3KUF Frequency-boosting Converter (BUC)

Order code:1-070694
Manufacturer:Actox

Request A Quote Description

ABAn3KUF Frequency-boosting Converter (BUC)

3 W converter with frequency increase (Ku-band)
This device is a fixed transmitter amplifier with low phase noise and synchronizing phase fluctuations , as well as a highly reliable MIS microwave power amplifier and an L-band converter (950 to 1,450 MHz) to Ku Vi (14.00 to 14.50 GHz) radio frequency at the output

ABAn3LKL Block Up Converter (BUC)

Order code:1-070695
Manufacturer:Actox

Request A Quote Description

ABAn3LKL Block Up Converter (BUC)

3 W converter with increased frequency (Ku-band)
Small overall size and weight
Power supply via IF cable
High output power efficiency (3 W min. @P1dB when overheating)

ABAn3LKLF Block Up Converter (BUC)

Order code:1-070696
Manufacturer:Actox

Request A Quote Description

ABAn3LKLF Block Up Converter (BUC)

3 W converter with increased frequency (Ku-band)
Small overall size and weight
Power supply via IF cable
High output power efficiency (3 W min. @P1dB when overheating)

ABA4K1314 Block Up Converter (BUC)

Order code:1-070697
Manufacturer:Actox

Request A Quote Description

ABA4K1314 Block Up Converter (BUC)

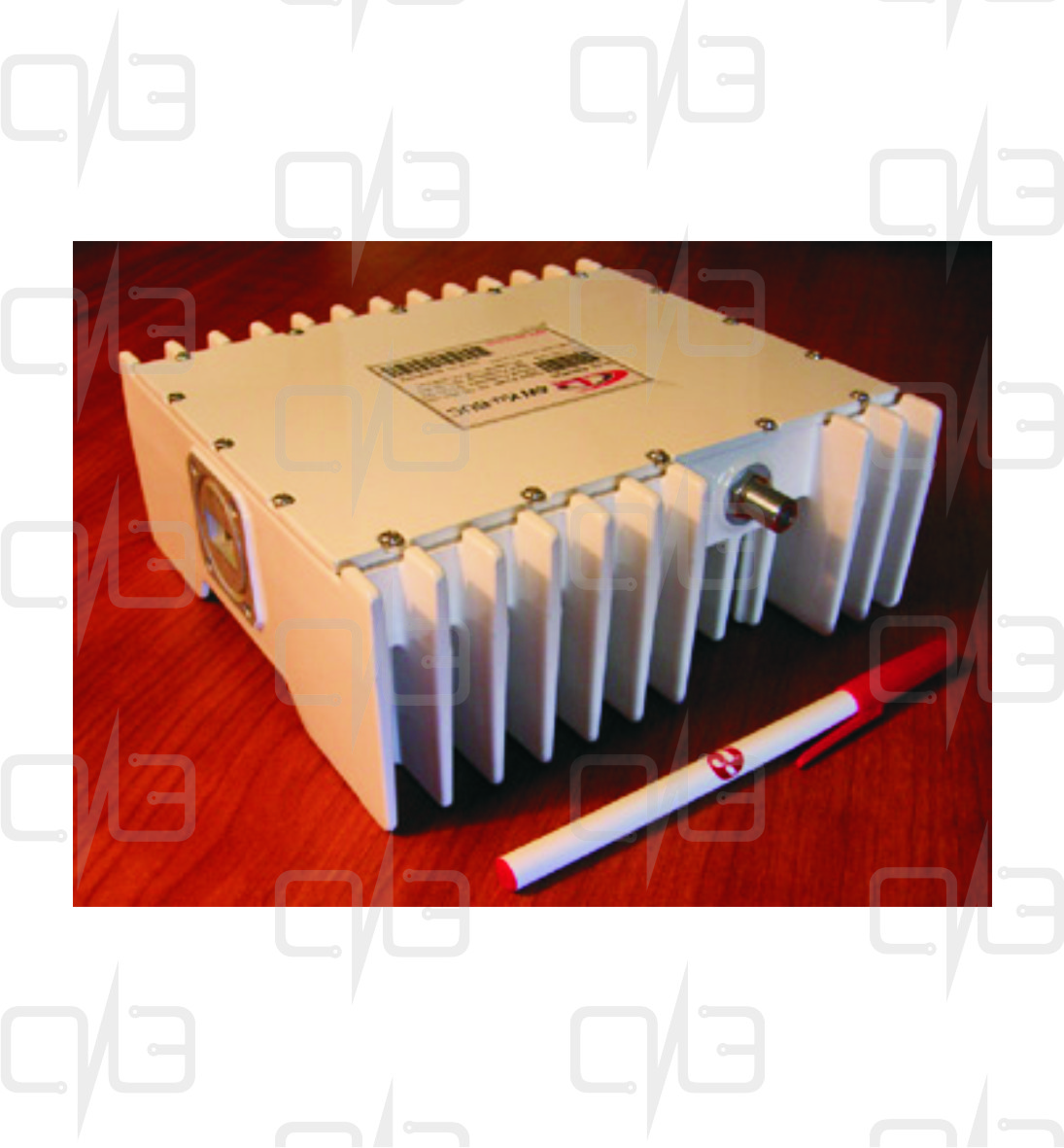

4 W P1dB universal frequency converter (Ku-band) Frequency range: 13.75-14.50 GHz
Dual control (the ability to switch electronically and manually 13.05 and 12.80 GHz)
Excellent low power consumption (29 W max.)
Digital temperature compensation
LED indicator
Replaceable connector type (F/n)
Required frequency of 10 MHz, high stability

ABA4K1213 Block Up Converter (BUC)

Order code:1-070698
Manufacturer:Actox

Request A Quote Description

ABA4K1213 Block Up Converter (BUC)

4 W P1dB universal frequency converter (Ku-band) Frequency range: 12.75-13.50 GHz
Dual control (the ability to switch electronically and manually 12.05 and 11.80 GHz)
Excellent low power consumption (29 W max.)
Digital temperature compensation
LED indicator
Replaceable connector type (F/n)
Required frequency of 10 MHz, high stability

ABA4K1112 Block Up Converter (BUC)

Order code:1-070699
Manufacturer:Actox

Request A Quote Description

ABA4K1112 Block Up Converter (BUC)

4 W P1dB Universal frequency converter (Ku-band)
Frequency range: 11.75-12.50 GHz
Dual control (the ability to switch electronically and manually 11.05 and 10.80 GHz)
Excellent low power consumption (29 W max.)
Digital temperature compensation
LED indicator
Replaceable connector type (F/n)
Required frequency of 10 MHz, high stability

ABA4KUL Block Up Converter (BUC)

Order code:1-070700
Manufacturer:Actox

Request A Quote Description

ABA4KUL Block Up Converter (BUC)

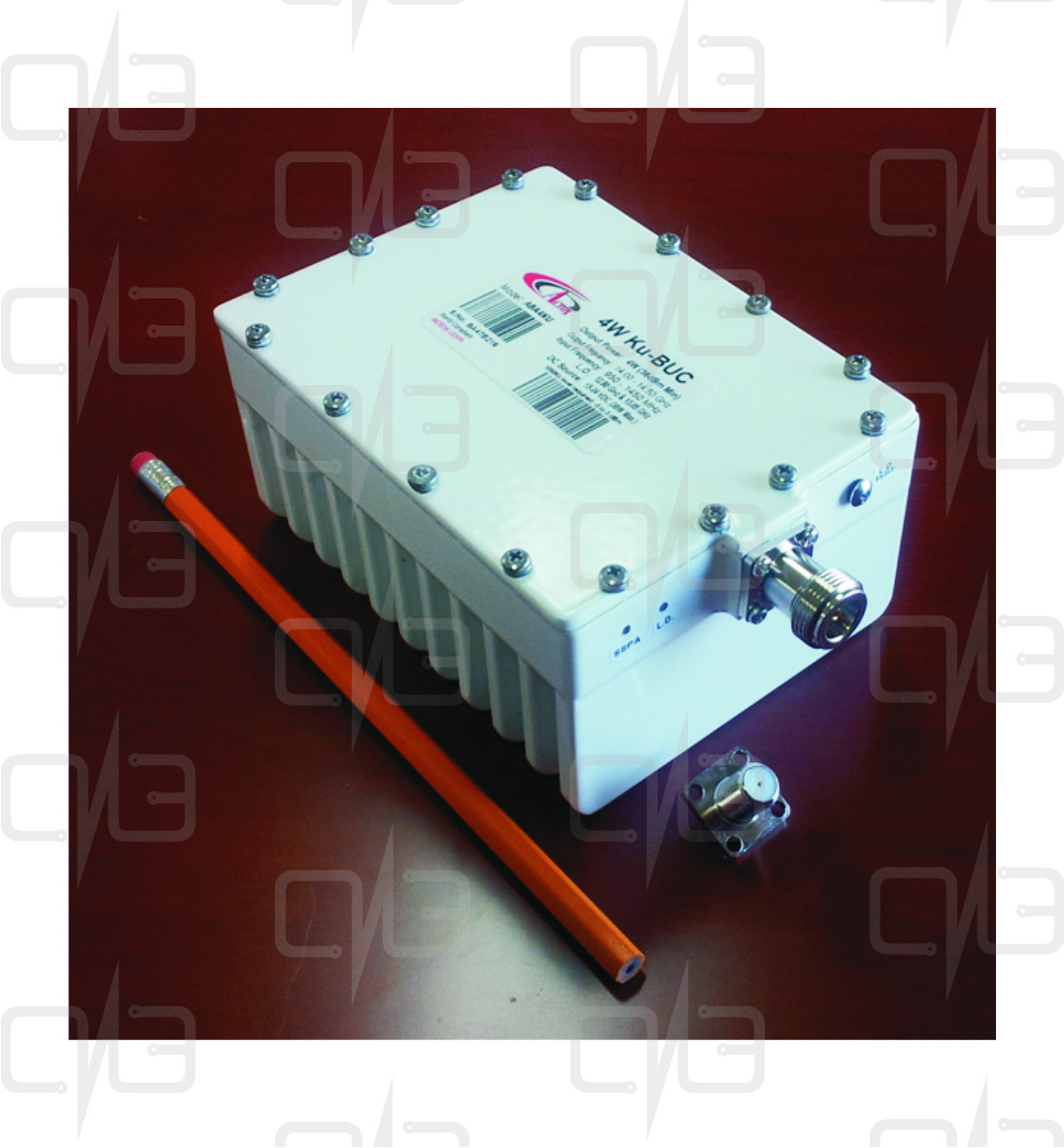

4 W converter with increased frequency (Ku-band)
Small overall size and weight
High output power efficiency (4 W min. imum @P1dB when overheating)
Low power consumption

ABA4KULF Block Up Converter (BUC)

Order code:1-070701
Manufacturer:Actox

Request A Quote Description

ABA4KULF Block Up Converter (BUC)

4 W converter with increased frequency (Ku-band)
Small overall size and weight
High output power efficiency (4 W min. imum @P1dB when overheating)
Low power consumption
